Pall — USA · Power Generation

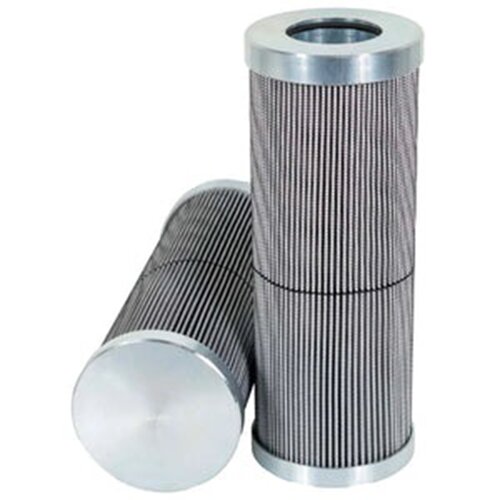

PFD12 Reservoir vent filter/dryer replacement canister
Entry Two Resources is an official channel partner of Pall (Malaysia) Sdn. Bhd., specialising in asset protection filtration for the oil & gas and power generation industries.
Overview
Pall PFD12
The 12-inch replacement canister for Pall’s PFD reservoir vent filter/dryer: a spin-on, silica-desiccant canister that filters and dries the air a reservoir draws in as its level and temperature change. The PFD’s isolation-valve design stops oil vapour flowing back into the desiccant, and a sight window shows when the canister is spent.
In Malaysia’s humidity, a plain particulate breather still lets water vapour in with every breath. A filter/dryer takes the water out as well — the reason it is specified on turbine lube, gearbox and hydraulic reservoirs, and on fuel tanks.
Elements in this family serve turbine lube oil and EHC control-fluid systems, reservoir breathers and process duties across gas-fired, coal-fired and combined-cycle plant — the part numbers we move most often for the power generation industry in Malaysia.
Current Pall part number
A current Pall part number.
Specifications
Pall PFD12 specification
Taken from Pall’s own published data — each value is numbered to the document it came from. Anything not listed is confirmed against your housing and duty when you enquire.
| Product | Replacement filter/dryer canister for the Pall PFD reservoir vent filter/dryer, 12 in nominal length[1] |
|---|---|
| Desiccant | Silica[2] |
| Hardware | Carbon steel[2] |
| Operating temperature | −54 °C to +82 °C[1] |
| Air flow | 7 SCFM maximum recommended[1] |
| Maximum diameter | 140 mm (5.5 in)[1] |
| Mounting | Must be mounted vertically[1] |
| Applications | Hydraulic reservoirs, fuel tanks, gear lube oil systems and other vented systems[1] |
Please note: Pall’s datasheet and Pall’s shop listing give different particulate ratings for this canister, so we have not published one. We confirm it with Pall when you enquire.
Reading the part number
How Pall’s ordering code breaks down for PFD12[1].
| Code | Meaning |
|---|---|
| PFD | Pall reservoir vent filter/dryer |
| 12 | Nominal length — 12 in. With no bracket or port code, the part number is the replacement canister rather than the complete assembly |
Sources
Product and series names are Pall’s, and the definitive datasheet for any element is the current one issued by Pall. Published values were retrieved on 30 September 2026.
Series
PFD reservoir vent filter/dryer
Desiccant filter/dryers that clean and dry the air a reservoir breathes, with a spin-on replacement canister and a sight window.
All Pall series we supply →Why Entry Two Resources
Buying Pall PFD12 in Malaysia
Checked against your housing
We confirm grade, seal and collapse rating against your housing and duty before we quote, and identify the current equivalent for superseded numbers.
