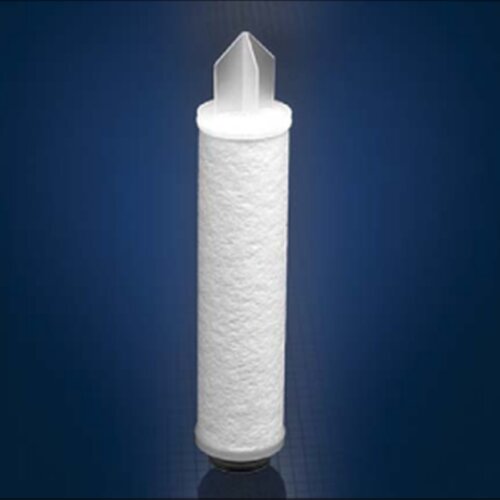

NXT10010UM18F Nexis T depth filter cartridge, 100 µm
Entry Two Resources is an official channel partner of Pall (Malaysia) Sdn. Bhd., specialising in asset protection filtration for the oil & gas and power generation industries.
Overview
Pall NXT10010UM18F
A Pall Nexis T melt-blown polypropylene depth cartridge in the 100 µm grade and 10-inch length, with a flat closed end and external 222 O-ring (the M18 fitting). Its graded pore structure does pre- and final filtration in one cartridge, which makes it a bulk-particulate stage for process water, condensate and chemical streams rather than a lube or hydraulic element.
Elements in this family serve turbine lube oil and EHC control-fluid systems, reservoir breathers and process duties across gas-fired, coal-fired and combined-cycle plant — the part numbers we move most often for the power generation industry in Malaysia.
Current Pall part number
The Nexis T series is current and Pall states no supersession for it.
Specifications
Pall NXT10010UM18F specification
Taken from Pall’s own published data — each value is numbered to the document it came from. Anything not listed is confirmed against your housing and duty when you enquire.
| Series | Pall Nexis T[1] |
|---|---|
| Removal rating | 100 µm grade, 90% removal efficiency at the rated size (single-pass test based on ASTM F-795)[1][2] |
| Filter medium and hardware | Polypropylene throughout — no adhesives, binders, resins or silicone[1] |
| End fitting | M18 — single open end, flat closed end, external 222 O-ring[3] |
| O-ring material | F — FEP-encapsulated fluorocarbon elastomer[3] |
| Nominal dimensions | 254 mm (10 in) long, 64 mm (2.5 in) OD[2] |
| Maximum differential pressure | 1.72 bar(d) / 25 psid at 60 °C; 3.45 bar(d) / 50 psid at ambient. Recommended change-out at 2.4 bar(d) / 35 psid[1] |
Please note: Pall’s own listing for this exact part number was unavailable when we checked. The values above come from Pall’s Nexis T datasheet and from Pall’s listings for the same grade, length, end fitting and seal code.
Reading the part number
How Pall’s ordering code breaks down for NXT10010UM18F[1][3].
| Code | Meaning |
|---|---|
| NXT | Nexis T cartridge |
| 100 | Filtration grade — 100 µm |
| 10 | Nominal length, 10 in |
| M18 | Single open end, flat closed end, external 222 O-ring |
| F | FEP-encapsulated fluorocarbon O-rings |
Sources
- Pall — Nexis T filter cartridges data sheet (FBNEXTEN) ↗
- Pall Shop — Nexis T NXT10010UM18V884 (same 100 µm grade and 10 in length) ↗
- Pall Shop — Nexis T NXT5010UM18F (same M18 end fitting and F seal) ↗
Product and series names are Pall’s, and the definitive datasheet for any element is the current one issued by Pall. Published values were retrieved on 30 September 2026.
Series
Nexis T
Polypropylene depth cartridges with a continuous gradient pore structure, used for process and pre-filtration duties rather than lube and hydraulic service.
