Sole Distributor of Camfil for Petronas
An authorised source — not a reseller — for Camfil gas turbine air intake filters across Petronas operations.
Camfil — Sweden
Camfil gas turbine air intake filters for Malaysia
Entry Two Resources is the Sole Distributor of Camfil for Petronas — supplying gas turbine air intake filtration to Malaysia’s largest energy operators under four consecutive terms of contract since 2016.
Four consecutive supply terms
An unbroken chain of renewed gas turbine air intake filter contracts with Petronas Carigali from 2016 through to 2027.
Stocked in all three regions
Warehouses in Peninsular Malaysia, Sabah and Sarawak — replacement elements do not wait on an import cycle.
Gas Turbine Air Intake Filtration
Protection and pressure drop, balanced against the site’s air
A gas turbine ingests enormous volumes of air. Everything that air carries — salt aerosol, dust, unburnt hydrocarbons, moisture — either ends up on the compressor blades or is stopped by the intake filter. Fouled blades lose compressor efficiency and output; corroded ones shorten the life of the most expensive part of the machine.
The trade-off runs the other way too. Filters that are too restrictive, or loaded past their useful life, raise the pressure drop across the intake and the turbine burns more fuel for the same megawatts. Correct filter selection is a balance between protection and pressure drop, and it is decided by the site’s air, not by the catalogue.
We supply the Camfil turbomachinery range against that balance, hold stock in Peninsular Malaysia, Sabah and Sarawak, and install and retrofit the elements ourselves.
Stage 1
Pre-filtration & coalescing
Weather protection, panel pre-filters and bag filters take out the coarse load and coalesce water droplets out of the air stream, so the expensive fine stages behind them are not consumed by dust and rain.
Stage 2
Intermediate high-efficiency
Compact / header frame filters carry the bulk of the fine particulate duty. On many intakes this is the stage that sets the overall pressure drop and the change-out interval.
Stage 3
Final protection
EPA-grade cartridge or compact final filters are the last line before the compressor — the stage that stops the salt and fine hydrocarbons responsible for hot-corrosion and blade fouling.
The Camfil Range We Supply
Camfil turbomachinery filters
Camfil’s turbomachinery range covers every stage of the gas turbine air inlet. We supply all three categories, and specify across them rather than selling a single family.
Stage 1 — pre-filtration & coalescing

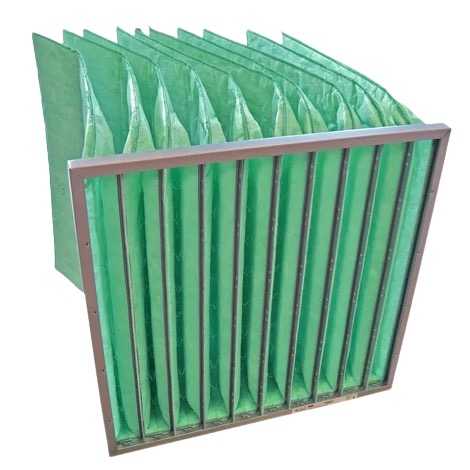

Bag filters
Pre / first-stage filters in the gas turbine air inlet. They remove the coarse impurities and act as coalescers, pulling smaller water droplets out of the air stream before it reaches the fine stages — which is exactly the duty that matters most on a Malaysian coastal or offshore intake.
- Filter classes
- ISO Coarse up to ISO ePM1 (Camfil T2–T9)
- Construction
- Standard 592 × 592 mm modules, 370–640 mm deep, in galvanised steel, stainless steel or injection-moulded plastic frames, with synthetic, glass or hybrid fibre media.
Product families
- Cam-Flo GT HybridHigh efficiency up to ISO ePM1, long life, tough media for turbulent airflow.
- CamGuardISO Coarse guard filter allowing on-line replacement for increased availability.
- Hi-CapISO Coarse pre-filter or exhaust filter with a long service life.
Stage 2 and/or 3 — high-efficiency

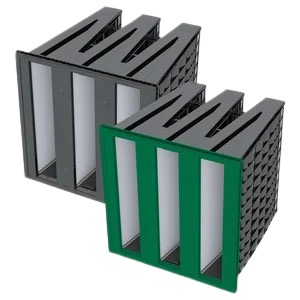

Compact / header frame filters
Mini-pleat compact filters used as second and/or third stage filtration depending on the inlet system. This is the range built for humid and wet conditions — hydrophobic treatment and a high wet burst pressure are the properties that decide whether an element survives a monsoon season.
- Filter classes
- Camfil T6–T13, reaching EPA grade
- Construction
- Standard 592 × 592 mm modules, 300–600 mm deep, injection-moulded plastic frames, pleated water-resistant glass fibre media.
Product families
- CamGTUp to EPA efficiency; hydrophobic with high wet burst pressure and long lifetime.
- CamPGTStatic filter, lightweight, long life and low initial pressure drop.
Final stage — static or self-cleaning pulse

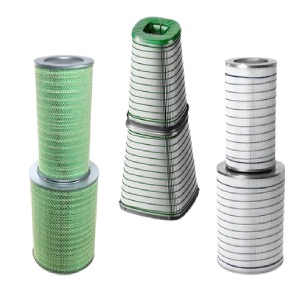

Cartridge filters
Final-stage cartridges in either self-cleaning pulse or static configurations, vertical or horizontal. Pulse systems suit high dust loading; static cartridges suit sites where the dominant threat is salt and fine hydrocarbons rather than bulk dust.
- Filter classes
- Camfil T6–T12 — M6–F8, F9, E10 and E12 (EN 779:2012 / EN 1822:2009)
- Construction
- Pulse arrangements include conical-cylindrical and cylindrical-cylindrical crossflow dual-element and Tenkay updraft single-element, in galvanised steel, stainless steel or powder-coated liners. Media options run from blended (T6–T8) through synthetic (T9–T10) to membrane (T12).
Product families
- PolytechPatented HemiPleat technology — improved air distribution and longer life at low operating pressure drop.
- Synthetic GTCDepth-loading synthetic media for humid environments; stable pressure drop and high non-discharging efficiency.
- CamBraneE12 membrane grade; excellent hydrophobic properties and protection against salt and fine hydrocarbons.
The categories below summarise Camfil’s turbomachinery range as published by the manufacturer. Entry Two Resources is an authorised distributor; product names and specifications are Camfil’s, and the definitive datasheet for any element is the current one issued by Camfil.
Malaysian Operating Conditions
Why intake filter selection is different here
The right element for a turbine in a temperate inland climate is usually the wrong one here. Four conditions drive most of the difference on Malaysian sites.
Offshore salt aerosol
Platforms in the Malay, Sarawak and Sabah basins draw air straight off the sea. Salt that reaches the compressor causes hot-corrosion attack, so offshore intakes need hydrophobic, high-efficiency final stages rather than the coarse arrangements that suffice inland.
Year-round humidity and monsoon rain
Relative humidity rarely drops far, and the northeast monsoon drives water at the intake horizontally. Media that loses efficiency when wet — or bursts under a wet load — fails exactly when the weather is worst. Wet burst pressure and drainage matter more here than in a dry climate.
Seasonal transboundary haze
Haze episodes load the air with fine particulate well below the size a coarse pre-filter will catch. Sites that see haze need the fine stages sized for a differential-pressure spike that arrives with little notice, and a stocked replacement set to match.
Coastal and industrial siting
Many Malaysian power stations sit near a coastline, a jetty or a neighbouring petrochemical plant. Fine hydrocarbons and salt together are far more aggressive than either alone, and drive the case for membrane-grade final filtration.
Contract History
Supplying Camfil filters to Malaysia’s operators since 2016
Gas turbine air intake filter supply contracts, oldest first. Client and period only — contract reference numbers are available on request.
2016
Petronas Carigali
Oct 2016 – 20191st term
2018
Malaysia LNG Sdn Bhd
Oct 2018 – 20231st term
2019
Petronas Carigali
Oct 2019 – 20212nd term
2019
Petronas Gas Bhd, Segamat
2019 – 2023Supply & delivery of Camfil filters
2021
Petronas Carigali
Nov 2021 – 20243rd term
2022
CGN EDRA
2022 – 2024
2023
Petronas Carigali
2023 – 20274th term — current
2023
Malaysia LNG Sdn Bhd
2023 – 20262nd term
2023
Petronas Pengerang Power
2023
Supply & Install
We fit the filters we supply
Upgrading an intake to a higher filter grade usually means the existing housings and frames no longer fit. We survey what is installed, fabricate the frames and adaptors the upgrade needs, and carry out the installation — including offshore, inside the outage window.
Installation & retrofitting services →Stock held locally
- Peninsular MalaysiaPuchong, Selangor
- SarawakBintulu, Sarawak
- SabahKimanis, Sabah
Tell us what your intake is running today
Send us the turbine, the site and the element currently fitted — or a photo of the label. We will come back with the Camfil specification, availability from local stock and price. Or call +603 8603 1318.
