Pall — USA · Power Generation

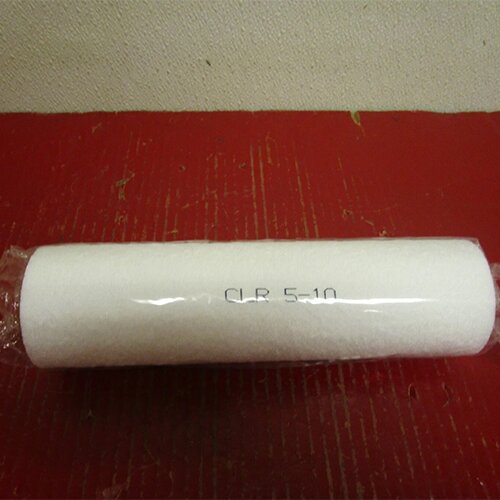

CLR510 Claris depth filter cartridge, 5 µm
Entry Two Resources is an official channel partner of Pall (Malaysia) Sdn. Bhd., specialising in asset protection filtration for the oil & gas and power generation industries.
Overview
Pall CLR510
A Pall Claris general-purpose depth cartridge: melt-blown polypropylene medium, core and end cap with no adhesives, binders or surfactants, rated 5 µm nominal, in the 10-inch double-open-ended industrial style. Claris is the economical choice for process water, wash-down and pre-filtration where the stream needs cleaning but not a β-rated cut.
Elements in this family serve turbine lube oil and EHC control-fluid systems, reservoir breathers and process duties across gas-fired, coal-fired and combined-cycle plant — the part numbers we move most often for the power generation industry in Malaysia.
Current Pall part number
A current Pall part number, listed by Pall with no supersession.
Specifications
Pall CLR510 specification
Taken from Pall’s own published data — each value is numbered to the document it came from. Anything not listed is confirmed against your housing and duty when you enquire.
| Series | Pall Claris depth filter[1][2] |
|---|---|
| Removal rating | 5 µm nominal[1] |
| Filter medium and hardware | Polypropylene medium, core and end cap — no adhesives, binders or surfactants[2] |
| Configuration | Double open ended, industrial, no end caps[1] |
| Nominal dimensions | 254 mm (10 in) long, 64 mm (2.5 in) OD[1] |
| Maximum differential pressure | 1.72 bar(d) / 25 psid at 60 °C; 3.45 bar(d) / 50 psid at 20 °C. Recommended change-out at 2.4 bar(d) / 35 psid[2] |
Reading the part number
How Pall’s ordering code breaks down for CLR510[2].
| Code | Meaning |
|---|---|
| CLR | Claris depth filter |
| 5 | Removal rating — 5 µm |
| 10 | Nominal length — 254 mm (10 in) |
| (none) | No adaptor code — double open ended, no end caps |
Sources
Product and series names are Pall’s, and the definitive datasheet for any element is the current one issued by Pall. Published values were retrieved on 30 September 2026.
Series
Claris
General-purpose melt-blown polypropylene depth cartridges with a nominal rating, for economical process and pre-filtration duties.
All Pall series we supply →Why Entry Two Resources
Buying Pall CLR510 in Malaysia
Checked against your housing
We confirm grade, seal and collapse rating against your housing and duty before we quote, and identify the current equivalent for superseded numbers.
