We are an official channel partner of Pall (Malaysia) Sdn. Bhd., specialising in asset protection — genuine Pall elements with traceability, not grey-market stock.
Pall — USA · Power Generation
HC0293SEE5 Reservoir air breather element, 3 µm
Entry Two Resources is an official channel partner of Pall (Malaysia) Sdn. Bhd., specialising in asset protection filtration for the oil & gas and power generation industries.
Overview

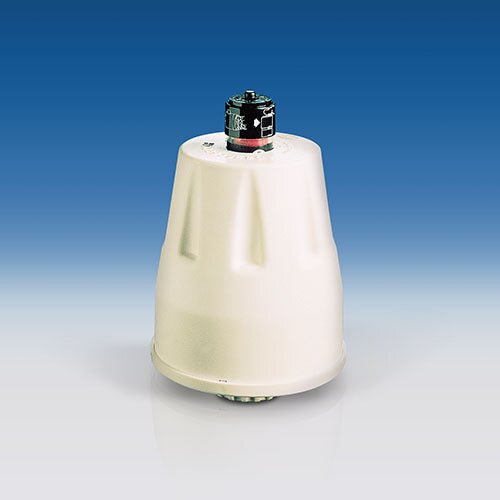

Pall HC0293SEE5
Despite the HC prefix, this is not a hydraulic cartridge: it is the disposable 3 µm element for Pall’s 0293 Series non-corroding reservoir air breathers, with oleophobic resin-bonded fibres potted in epoxy inside a polyamide cap and shroud.
A reservoir breathes every time it heats and cools, and on a Malaysian site every breath is warm, humid air. The breather is the cheapest place to stop particulate and water from entering a lube or hydraulic system in the first place — which is why we treat it as part of the same asset-protection package as the elements downstream.
Elements in this family serve turbine lube oil and EHC control-fluid systems, reservoir breathers and process duties across gas-fired, coal-fired and combined-cycle plant — the part numbers we move most often for the power generation industry in Malaysia.
Current Pall part number
A current Pall part number.
Specifications
Pall HC0293SEE5 specification
Taken from Pall’s own published data — each value is numbered to the document it came from. Anything not listed is confirmed against your housing and duty when you enquire.
| Product | Air breather filter element for Pall 0293 Series reservoir breathers[1] |
|---|---|
| Filtration rating | 3 µm in air[1] |
| Filter medium | Oleophobic resin-bonded fibres, epoxy-resin potted[1] |
| Cap and shroud | Polyamide[1] |
| Collapse pressure | 1 bar / 15 psid minimum (filter medium)[1] |
| Operating temperature | −20 °C to +70 °C[1] |
| Nominal dimensions | 118 mm (4.65 in) OD, 185 mm (7.3 in) long[2] |
| Related hardware | Adapter HD7500-RFC; vacuum indicator HC0293D004 (37 mbar setting); fill-port assembly HD7500-RFK; pipe adapter AA9500-BFH[1] |
Sources
Product and series names are Pall’s, and the definitive datasheet for any element is the current one issued by Pall. Published values were retrieved on 30 September 2026.
Why Entry Two Resources
Buying Pall HC0293SEE5 in Malaysia
Checked against your housing
We confirm grade, seal and collapse rating against your housing and duty before we quote, and identify the current equivalent for superseded numbers.
Power Generation
Other Pall elements in this family
Enquire Now
Request a quotation for Pall HC0293SEE5
Tell us the quantity and where it needs to be delivered. We will confirm the specification against your housing and come back with price and availability.
