Official Pall channel partner
We are an official channel partner of Pall (Malaysia) Sdn. Bhd., specialising in asset protection — genuine Pall elements with traceability, not grey-market stock.
Pall — USA · Lube & Hydraulics
UE610AP20Z Athalon return-line filter element, 5 µm
Entry Two Resources is an official channel partner of Pall (Malaysia) Sdn. Bhd., specialising in asset protection filtration for the oil & gas and power generation industries.
Overview

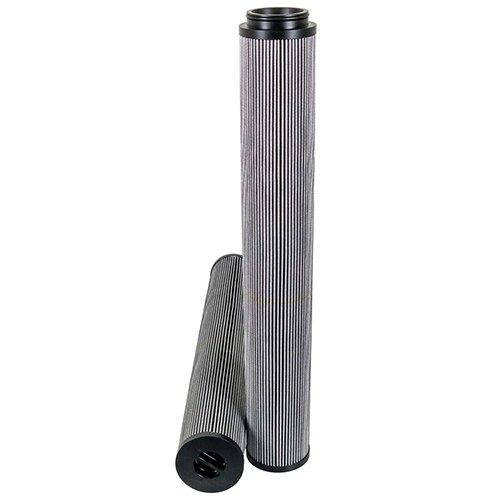

Pall UE610AP20Z
A large-format Athalon glass-fibre element in the 610 size, rated 5 µm at βx(c) ≥ 2000, in the 20-inch length — for high-flow return lines on turbine and hydraulic systems. It fits Pall’s Athalon UR610 return-line housing.
Elements in this family protect hydraulic power units, governor and control systems, gearboxes and lube circuits on rotating equipment — offshore and onshore. This is the family behind our recurring Pall supply to the power generation industry in Malaysia.
Current Pall part number
Supplied under the same part number in Pall’s current Athalon range.
Ultipleat SRT now supplied as Athalon — what changed →Specifications
Pall UE610AP20Z specification
Taken from Pall’s own published data — each value is numbered to the document it came from. Anything not listed is confirmed against your housing and duty when you enquire.
| Series | Athalon (formerly Ultipleat SRT), 610 element size[1][2] |
|---|---|
| Filtration rating | 5 µm, βx(c) ≥ 2000 (ISO 16889)[1][2] |
| Filter medium | Glass fibre[1] |
| Hardware | Polyacetal[1] |
| Seal material | Fluorocarbon[1] |
| Nominal outside diameter | 152 mm (6 in)[1] |
| Nominal length | 508 mm (20 in)[1] |
| Collapse / burst rating | 10 bar(d) / 150 psid[2][3] |
| Operating temperature | −29 °C to +120 °C with fluorocarbon seals; 60 °C maximum in water-based fluids[2] |
| Fluid compatibility | All petroleum oils, most water glycols, water-oil emulsions, and synthetic hydraulic and lube fluids[2] |
| Compatible housings | Pall Athalon UR610 return-line filter[2] |
Reading the part number
How Pall’s ordering code breaks down for UE610AP20Z[2].
| Code | Meaning |
|---|---|
| UE | Pall Ultipleat SRT / Athalon element |
| 610 | Element size 610 |
| AP | Filtration grade — 5 µm, βx(c) ≥ 2000 |
| 20 | Nominal length, 20 in |
| Z | Fluorocarbon seals (standard) |
Sources
- Pall Shop — UE610AP20Z product listing ↗
- Pall — Athalon™ UR610 return-line filter datasheet ↗
- Pall — Athalon™ hydraulic and lube filters brochure (M&EATHALONENa) ↗
Product and series names are Pall’s, and the definitive datasheet for any element is the current one issued by Pall. Published values were retrieved on 30 September 2026.
Series
Athalon (formerly Ultipleat SRT)
Coreless laid-over-pleat glass-fibre elements for pressure and return lines, now rated βx(c) ≥ 2000 (ISO 16889). UE210 and UE610 part numbers carried over unchanged when Pall moved the range to the Athalon name.
Send us a legacy UE part number — or a competitor’s element — and we will identify the current equivalent for you.
All Pall series we supply →Why Entry Two Resources
Buying Pall UE610AP20Z in Malaysia
Checked against your housing
We confirm grade, seal and collapse rating against your housing and duty before we quote, and identify the current equivalent for superseded numbers.
Lube & Hydraulics
Other Pall elements in this family
Enquire Now
Request a quotation for Pall UE610AP20Z
Tell us the quantity and where it needs to be delivered. We will confirm the specification against your housing and come back with price and availability.
Or call +603 8603 1318
