We are an official channel partner of Pall (Malaysia) Sdn. Bhd., specialising in asset protection — genuine Pall elements with traceability, not grey-market stock.
Pall — USA · Lube & Hydraulics

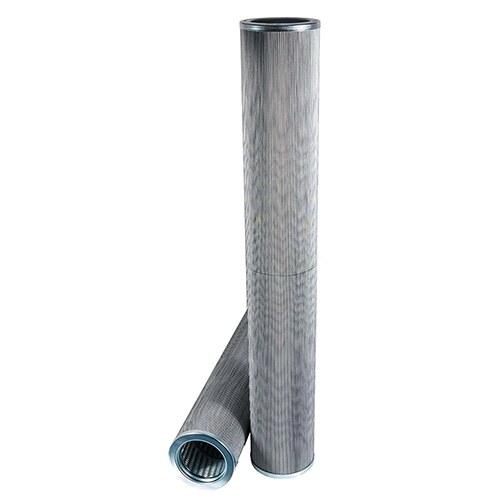

HC8300FRS39Z Supralon lube & hydraulic element, 12 µm, 39 in
Entry Two Resources is an official channel partner of Pall (Malaysia) Sdn. Bhd., specialising in asset protection filtration for the oil & gas and power generation industries.
Overview
Pall HC8300FRS39Z
A long-format Supralon glass-fibre element for the 8300 family, rated 12 µm at βx(c) ≥ 2000, in the 39-inch length — the element for Pall’s coreless 8300/04/10/14 Series high-flow assemblies on lube and return circuits.
Pall has discontinued the 8300 Series housing itself and is replacing it with the Ultipleat UR619 assembly, but the elements for installed 8300 housings remain available. If you are running an 8300 housing, this is the element to keep ordering until you plan the housing change.
Elements in this family protect hydraulic power units, governor and control systems, gearboxes and lube circuits on rotating equipment — offshore and onshore. This is the family behind our recurring Pall supply to the power generation industry in Malaysia.
Current Pall part number
The element is current; the 8300 Series housing it fits has been discontinued by Pall.
Pall 8300 Series housing discontinued — what it means for you →Specifications
Pall HC8300FRS39Z specification
Taken from Pall’s own published data — each value is numbered to the document it came from. Anything not listed is confirmed against your housing and duty when you enquire.
| Series | Supralon, standard medium, 8300 family[1][2] |
|---|---|
| Filtration rating | 12 µm, βx(c) ≥ 2000 (ISO 16889)[1][2] |
| Filter medium | Glass fibre[1] |
| Hardware | Corrosion-protected carbon steel[1] |
| Seal material | Fluorocarbon[1] |
| Nominal outside diameter | 152 mm (5.99 in)[1] |
| Nominal length | 991 mm (39 in)[1] |
| Collapse rating | 10 bar / 150 psid (8300 Series element)[3] |
| Operating temperature | −29 °C to +120 °C with fluorocarbon seals; 60 °C maximum in water-based fluids[2] |
| Fluid compatibility | Petroleum oils, water glycols, water-oil emulsions and high-water-content fluids; fluorocarbon seals also suit industrial phosphate esters, diesters and specified synthetics[2] |
| Compatible housings | Pall 8300/04/10/14 Series filter assemblies (discontinued; to 28 bar, 1,135 L/min)[3] |
Reading the part number
How Pall’s ordering code breaks down for HC8300FRS39Z[2].
| Code | Meaning |
|---|---|
| HC | Pall hydraulic cartridge |
| 8300 | Element family (size and housing fit) |
| F | Filter element |
| R | Supralon medium, standard version |
| S | Filtration grade — 12 µm, βx(c) ≥ 2000 |
| 39 | Nominal length, 39 in |
| Z | Fluorocarbon seals (standard) |
Sources
- Pall Shop — HC8300FRS39Z product listing ↗
- Pall — Supralon™ Lube & Hydraulic Filter Elements datasheet (PISUPRALONEN) ↗
- Pall Shop — 8300/04/10/14 Series filter assemblies ↗
Product and series names are Pall’s, and the definitive datasheet for any element is the current one issued by Pall. Published values were retrieved on 30 September 2026.
Series
Supralon (replaces Ultipor III / Coralon)
Pall’s current glass-fibre lube and hydraulic elements, rated βx(c) ≥ 2000 (ISO 16889), anti-static and fitted with fluorocarbon seals as standard. The seventh character of the part number is R for standard-collapse or H for high-collapse Supralon.
Supralon replaced Coralon and Ultipor III from 1 October 2023. Send us an older HC part number and we will identify the current Supralon equivalent for you.
All Pall series we supply →Why Entry Two Resources
Buying Pall HC8300FRS39Z in Malaysia
Checked against your housing
We confirm grade, seal and collapse rating against your housing and duty before we quote, and identify the current equivalent for superseded numbers.
